Visio 500

Visio 500 is the new Full HD desktop magnifier for people with visual impairments. The main focus of our product-development was an optimal ergonomic design and intuitive usability. The screen is widely adjustable and allows the user to set it easily in the best individual position for a relaxed reading. The camera can be switched electrically in different positions, including mirror-viewing.

What makes the Visio 500 the perfekt solution for the professional environment:

  • Ergonomically optimized
  • Simple and intuitive handling
  • Full HD camera and screen
  • Monitor height, tilt and reading distance are easily adjustable
  • Newly designed reading table with switchable damping function
  • Modern design
  • Small footprint compared to traditional CCTV cameras
  • Superior quality made in Germany for vocational and private use

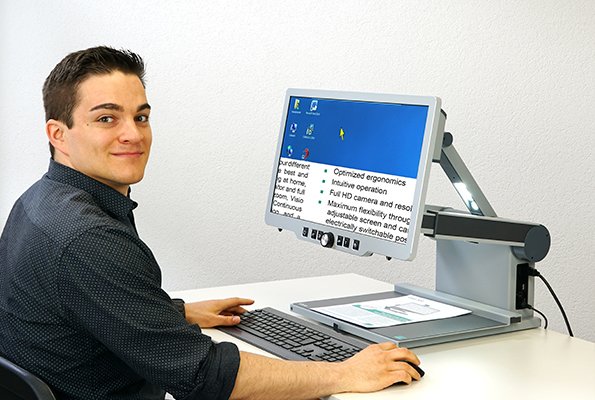

Visio 500 application

Innovative new reading table

A newly developed reading table with damping in the reading direction provides high comfort through “soft movement”. Vertically (y-direction) the table can be locked and the y-movement is carried out through the moving camera, controlled by pressure sensors in the table. This drastically saves deskspace and allows placing a PC-keyboard directly in front of the reading table – especially helpful for people using the Visio 500 split screen function with a connected PC.

Technical Data and Downloads


Magnification

  • 1,1x to 55x

Modes

  • Full color and 7 false colors switchable in high contrast mode
  • Image-Optimization

Monitor

  • 22” (55cm) screen size with LED backlight
  • Non-glare screen
  • Full HD resolution (1080p, 1920 ×1080 pixels)
  • Operating panel integrated in Monitor

Adjustment of the Monitor

  • Height, Tilt and reading distance
  • Electrically released brakes
  • Integrated Split-Screen-Function

Camera

  • Full HD Camera (1080 p, 60 Hz)
  • 30x optical zoom
  • Continuous autofocus, (toggle on/off)

Camera Positions (switchable)

  • Top of Page
  • Writing position (vertical)
  • Reading position
  • Mirror Position

Reading Table

  • Standard function as x/y-table
  • Switchable damping function
  • Lockable in the y-direction, then only movable horizontally
  • Controlling the camera movement through pressure sensors on the reading table

Dimensions

  • 52 × 48 × 25 cm (20” × 18.5” × 9.5”)
  • Approx. 13 kg (28.5 lbs)

Connector

  • HDMI in / Full HD HDMI out / Full HD
  • USB 3.0 (USB Video Class Device)
  • External Power Supply
